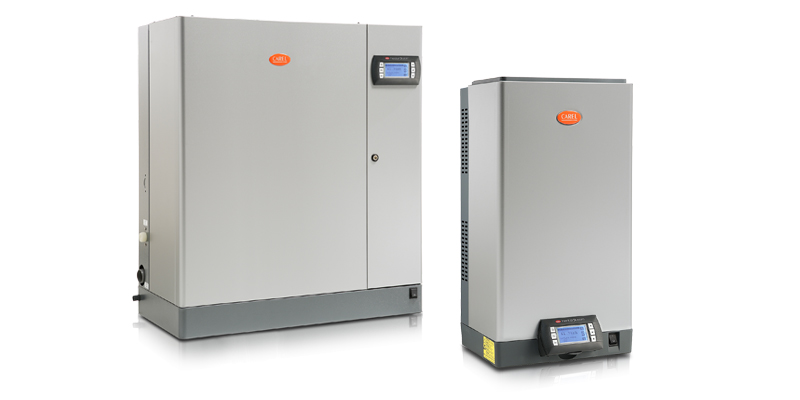

heaterSteam NA
![heaterSteam NA](/documents/10191/2419826/heatersteam-rel-3_obsolete.jpg/e0e45b6c-621b-4a04-86ea-777b5b4ca42a?t=1717750292000)
General characteristics
Range of isothermal resistive humidifiers for steam control and distribution, equipped with graphic display. Available models: - UR002, UR004, UR006, UR010, UR013 with steam production capacity up to 13 kg/h (28.66 lb/h), hydraulic connections under the humidifier base;
- UR020, UR027, UR040, UR053, UR060, UR080 with steam production capacity from 20 to 80 kg/h (44.09 to 176.37 lb/h), hydraulic connections at the side of the humidifier.
-
Plus
heaterSteam process: - Incoloy® 825 heaters;
- fast installation using the wizard;
- automatic thermal shock;
- Modbus and BACnet™ protocols on BMS and Ethernet port;
- USB port;
- tERA ready;
- preheating for rapid production.
- titanium heaters;
- built-in web server;
- main/secondary “endurance” function with redundancy and rotation;
- wireless sensor reception;
- Kevlar scale removal sack;
- thermally insulated cylinder.
Documentation
Technical
-
Manuals
* Entries are ordered by date
Code Description Language Date * Release Code +0300080DE Description heaterSteam - UR Befeuchter mit elektrischen Heizelementen Language GER Date 05/02/2018 Release 1.4 Code +0300080SV Description Language SWE Date 05/02/2018 Release 1.4 Code +0300080FI Description heaterSteam - UR Vastuskostutin Language FIN Date 05/02/2018 Release 1.4 Code +0300080RU Description heaterSteam - UR Электрические изотермические увлажнители Language RUS Date 05/02/2018 Release 1.4 Code +0300080IT Description heaterSteam - UR Umidificatore a resistenze elettriche Language ITA Date 05/02/2018 Release 1.4 Code +0300080FR Description heaterSteam - UR Humidificateur à résistances électriques Language FRE Date 05/02/2018 Release 1.4 Code +0300080ES Description heaterSteam - UR Humidificador por resistencias eléctricas Language SPA Date 05/02/2018 Release 1.4 Code +0300080EN Description heaterSteam - UR Electric resistance humidifier Language ENG Date 05/02/2018 Release 1.4
