k.Air

P+DA0*, P+5A0*
k.Air

  • General characteristics

    k.Air is the ready-to-use solution for managing air handling and ventilation units.

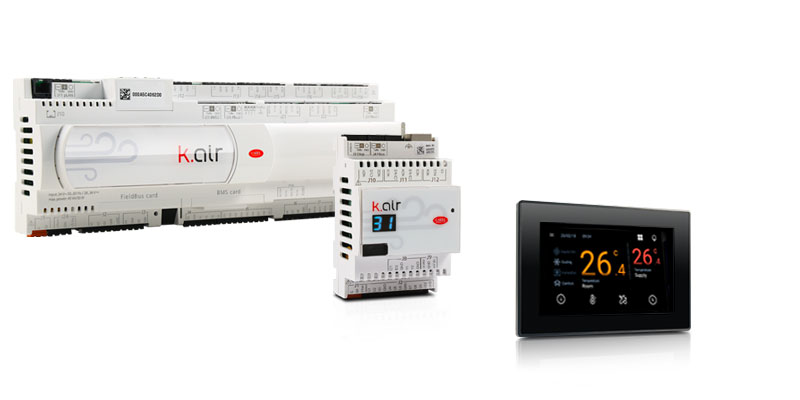

    k.Air is a preprogrammed and fully-configurable controller, designed to reduce times and costs, from design right through to commissioning. Thanks to the LARGE, MINI, and SMART versions and the feature-rich software, k.Air offers considerable flexibility, so as manage as many applications as possible, from the simplest to the most complex unit.

    The distinctive feature of k.Air is the result of CAREL's extensive experience in air handling unit and humidification management applications. Its intelligent control logic in fact ensures comfort, indoor air quality and a healthy environment, always with the lowest energy consumption, through hygienic and efficient operation of all of the components of the air handling unit.

    k.Air offers an advanced user experience: simplified access to information for users and service via an integrated web interface. A set of graphic pages with unit dashboards are available from first start-up, ready to be used with the new pGDx family of touchscreen displays.



  • Plus

    Flexibility

    A single application with modular architecture, designed to adapt to a wide range of application layouts.

    Plug&play

    Easy configuration and commissioning.

    • Pre-loaded configurations;
    • Custom configurations generated by an external tool;
    • Auto-Backup of the last active configuration;
    • Manual configuration via display of all the unit's components;

    Connectivity

    Simplified integration, both in the field with the unit's components, and integration with higher-level supervisory systems or BMS via built-in serial and Ethernet communication. Standard building automation protocols such as Modbus and BACnet are native in the controller.

    Usability

    Built-in web interface with graphic pages and dashboards.

    Air quality and hygiene

    • Indoor air quality control
    • Accurate control of isothermal and adiabatic humidification
    • VDI-6022 program, with functions to improve unit hygiene based on the requirements of the VDI standard

    Energy efficiency

    • Smart device management based on minimum energy consumption
    • Freecooling, freeheating, heat recovery and indirect evaporative cooling
    • Management of direct expansion systems with DC compressors and EEV synchronisation






Documentation

Technical

  • Manuals
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +030220980

    		 Description k.Air Controllo per unità di trattamento aria

    		 Language ITA

    		 Date 04/10/2023

    		 Release 1.5

    Code +030220981

    		 Description k.Air Air handling unit controller

    		 Language ENG

    		 Date 04/10/2023

    		 Release 1.5

    Code +030220982

    		 Description k.Air Commande pour unités de traitement d’air

    		 Language FRE

    		 Date 04/10/2023

    		 Release 1.5

    Code +030220984

    		 Description k.Air Control para unidades de tratamiento del aire

    		 Language SPA

    		 Date 04/10/2023

    		 Release 1.5

  • Technical Leaflets
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +0500135IE

    		 Description P+5A0SFC*LK, P+DA00FHD*FK: k.Air - kit per controllo unità trattamento aria e ventilazione / kit for air handling and ventilation unit control

    		 Language ENG  ITA

    		 Date 04/10/2023

    		 Release 1.2


Commercial

  • Other related documentation
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +3000262EN

    		 Description Highly-efficient energy recovery for controlled mechanical ventilation units - Combined thermal wheel + reverse-cycle heat pump solution

    		 Language ENG

    		 Date 01/08/2024

    		 Release 1.0

    Code +3000262IT

    		 Description Recupero dell’energia ad alta efficienza per unità di ventilazione meccanica - Soluzione combinata di scambiatore di calore rotativo e pompa di calore reversibile

    		 Language ITA

    		 Date 01/08/2024

    		 Release 1.0

    Code +800004030

    		 Description Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico

    		 Language ITA

    		 Date 05/04/2023

    		 Release 1.2

    Code +800004031

    		 Description Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving

    		 Language ENG

    		 Date 05/04/2023

    		 Release 1.2

    Code +800004036

    		 Description Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach

    		 Language POL

    		 Date 05/04/2023

    		 Release 1.2
